Description
Stop screen reclaim solids before they reach your drains
Screen reclaiming sends ink residue, emulsion, sludge and debris through your wash trough every day.
The Hydro Separation Tank is designed to sit alongside your wash trough and filter heavier solids from outgoing wastewater before it reaches the sewer.

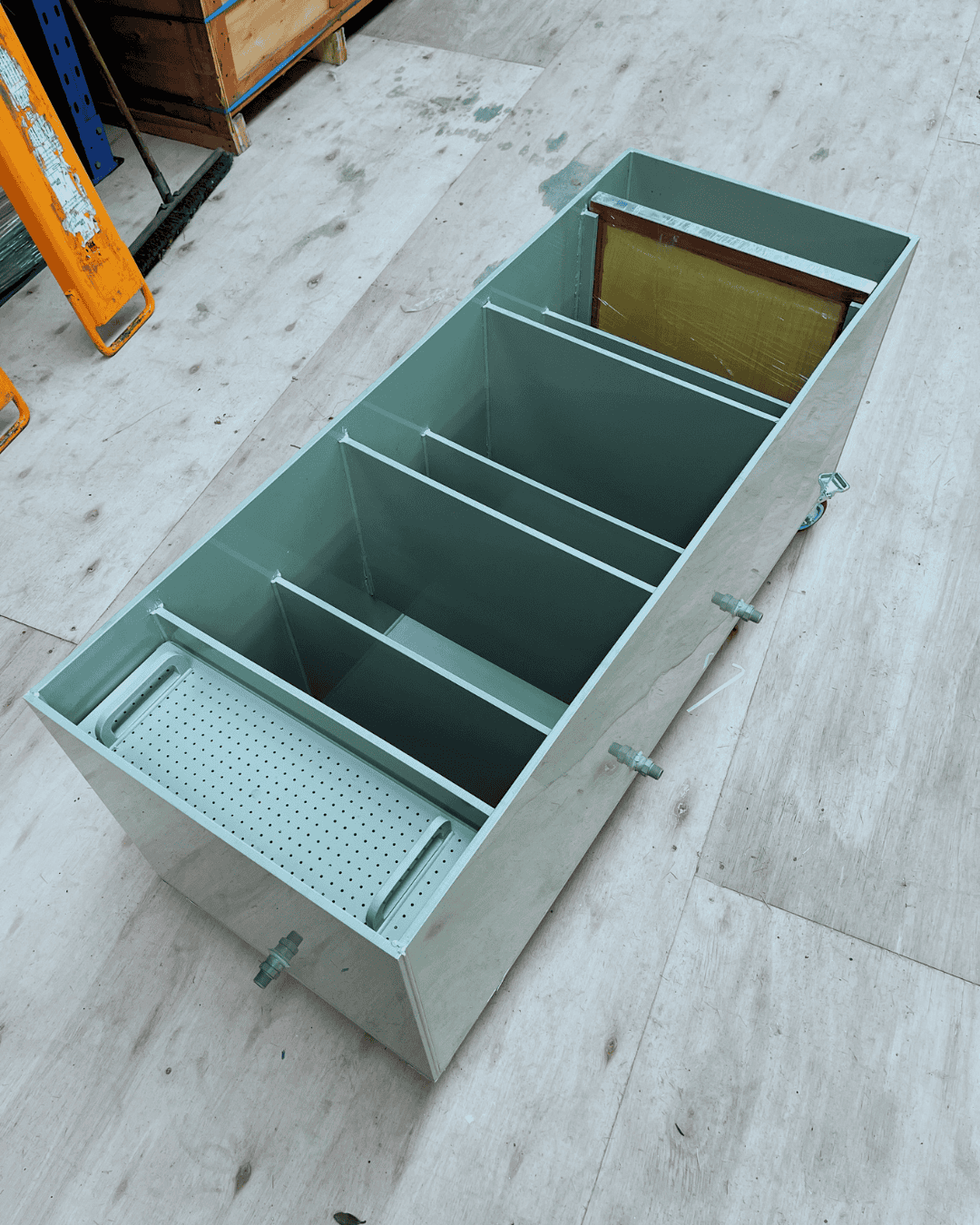

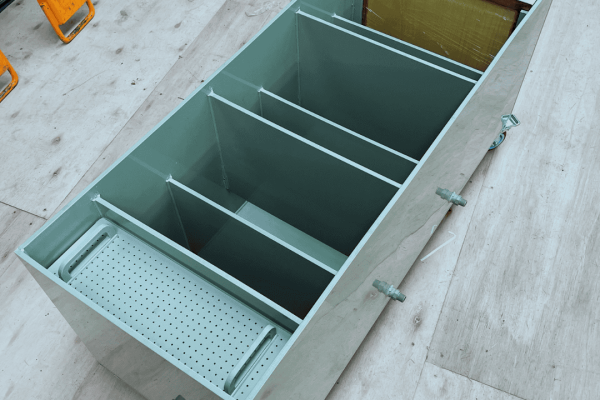

Using a removable large-solids tray, partitioned baffle chambers and a final 30-micron mesh filter, the system progressively captures reclaim waste while slowing and directing water through the tank.
A multi-stage defense for your washout drains
Rather than relying on a single filter, the Hydro Separation Tank separates solids across several stages.
Who is it for?
The Hydro Separation Tank is suited to:
- Commercial screen-printing businesses
- Shops reclaiming screens regularly
- High-volume production facilities
- Businesses installing a new washout area
- Printers experiencing reclaim sludge in their plumbing
- Workshops upgrading from basic drain screens or improvised filtration
- Businesses seeking a cleaner and more manageable reclaim process

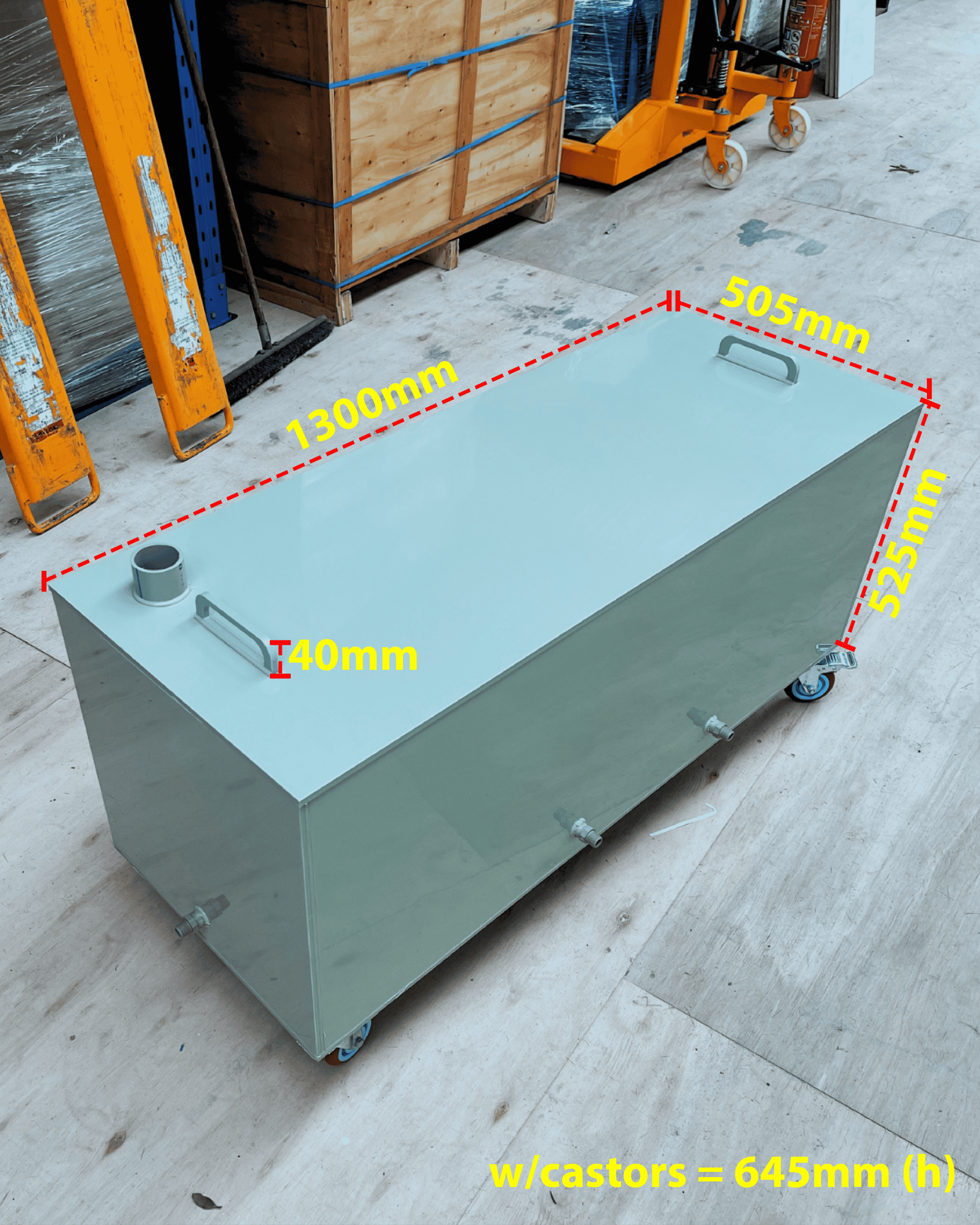

The Hydro Separation Tank is a purpose-built wastewater filtration system for use alongside a screen-printing wash trough.

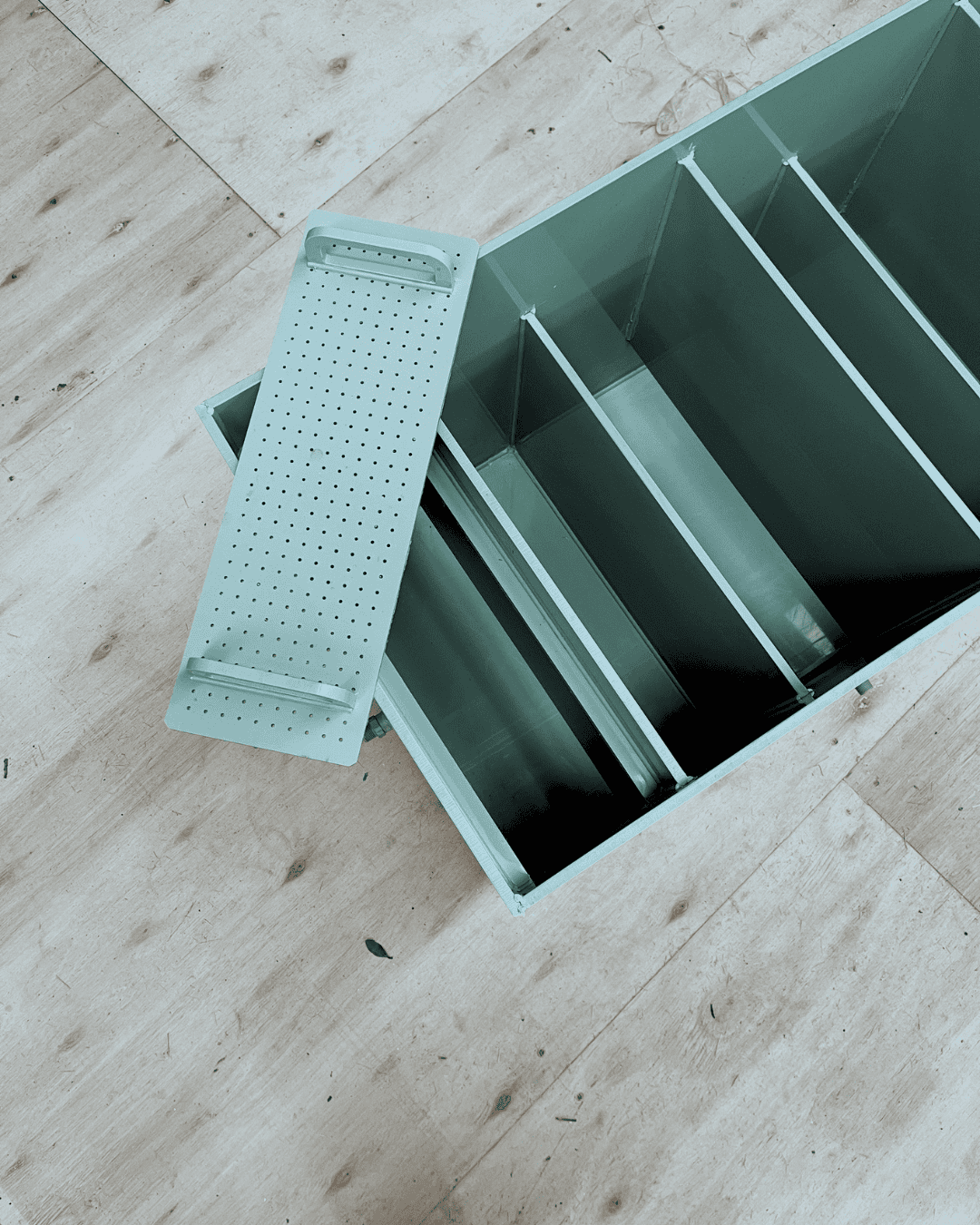

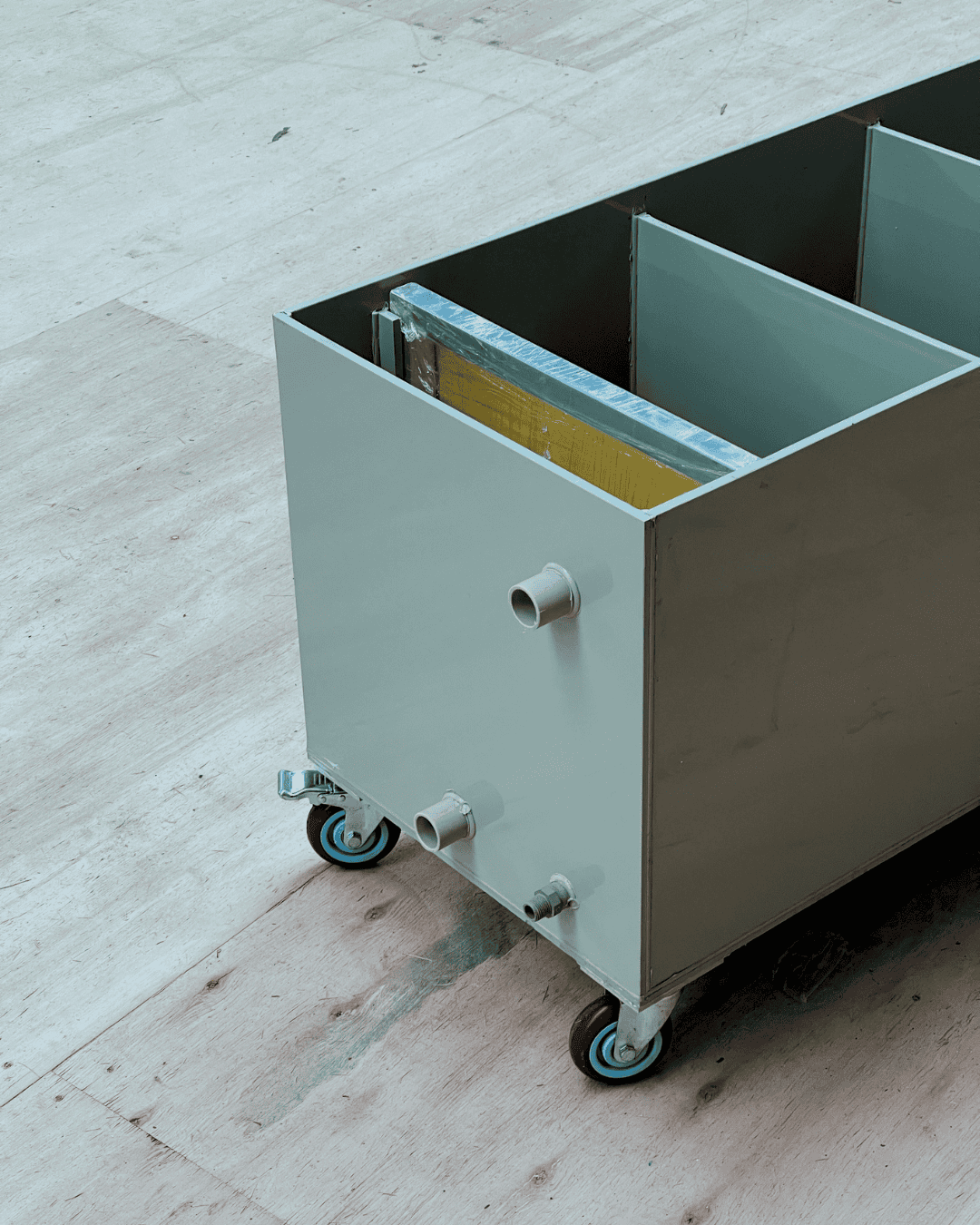

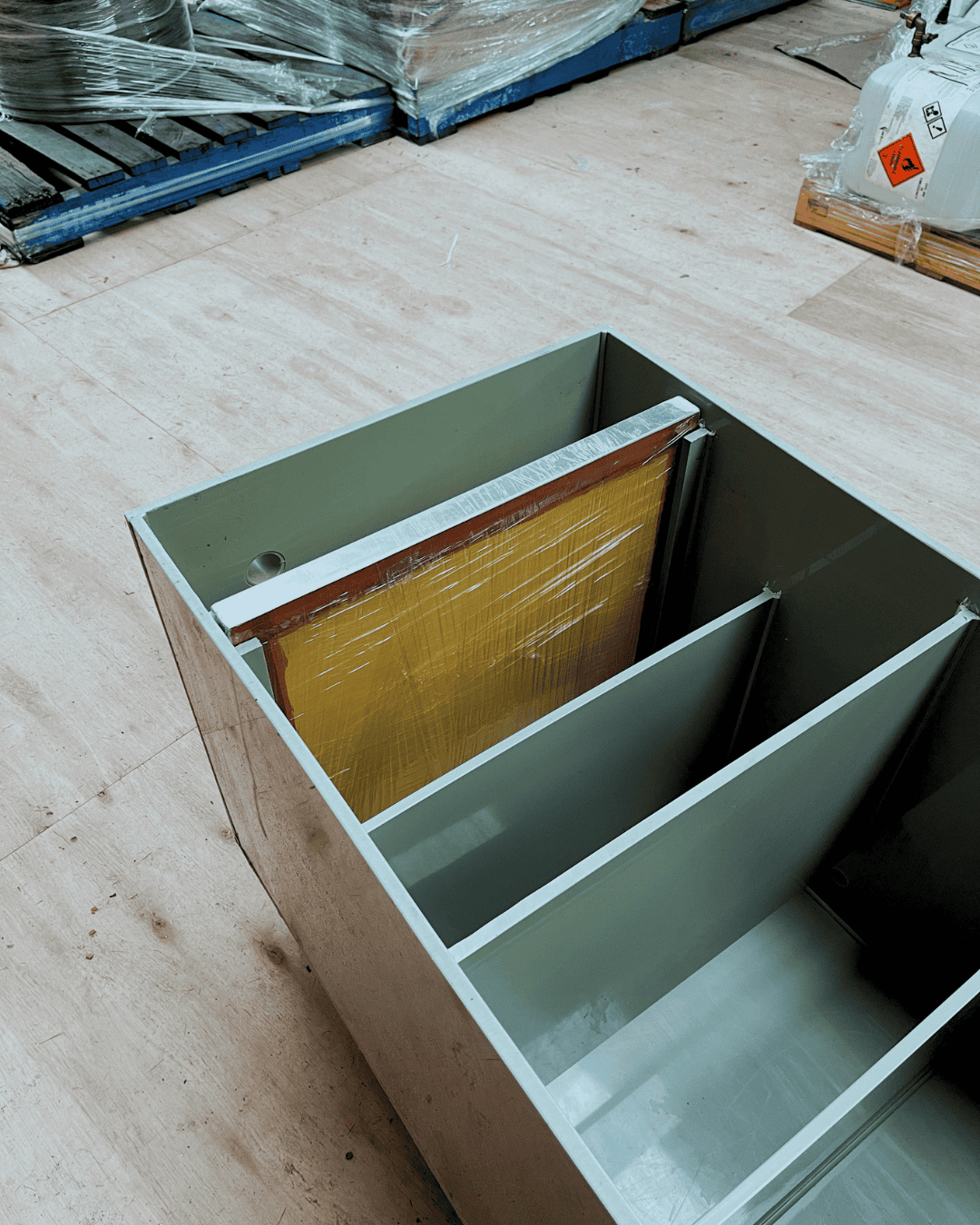

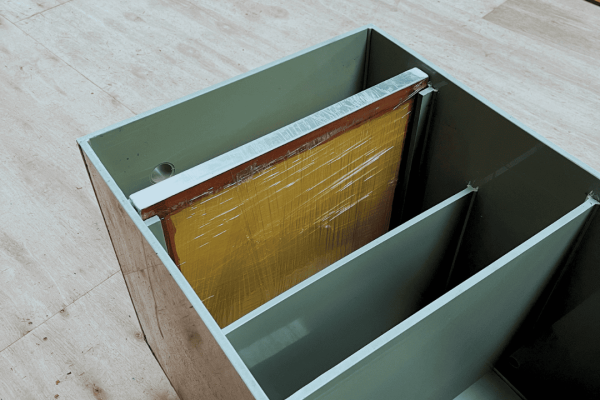

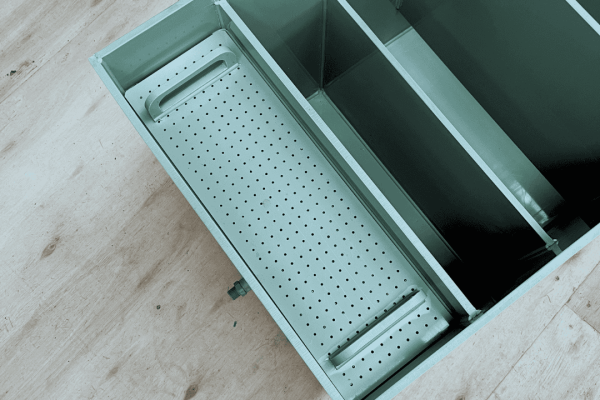

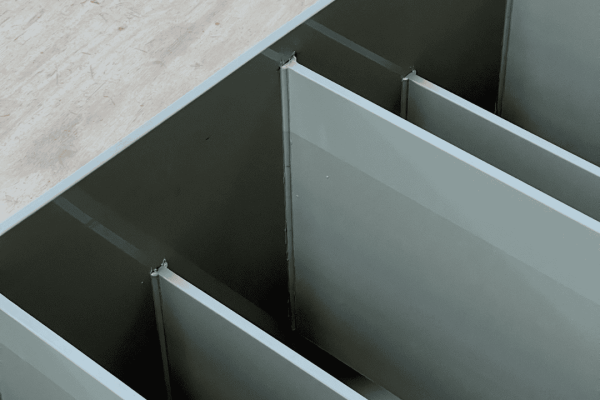

Constructed from sturdy polypropylene, the tank uses a removable 3 mm large-solids tray, sludge partition, welded baffle chambers and a final 30-micron mesh filter to progressively separate reclaim solids from outgoing wastewater.

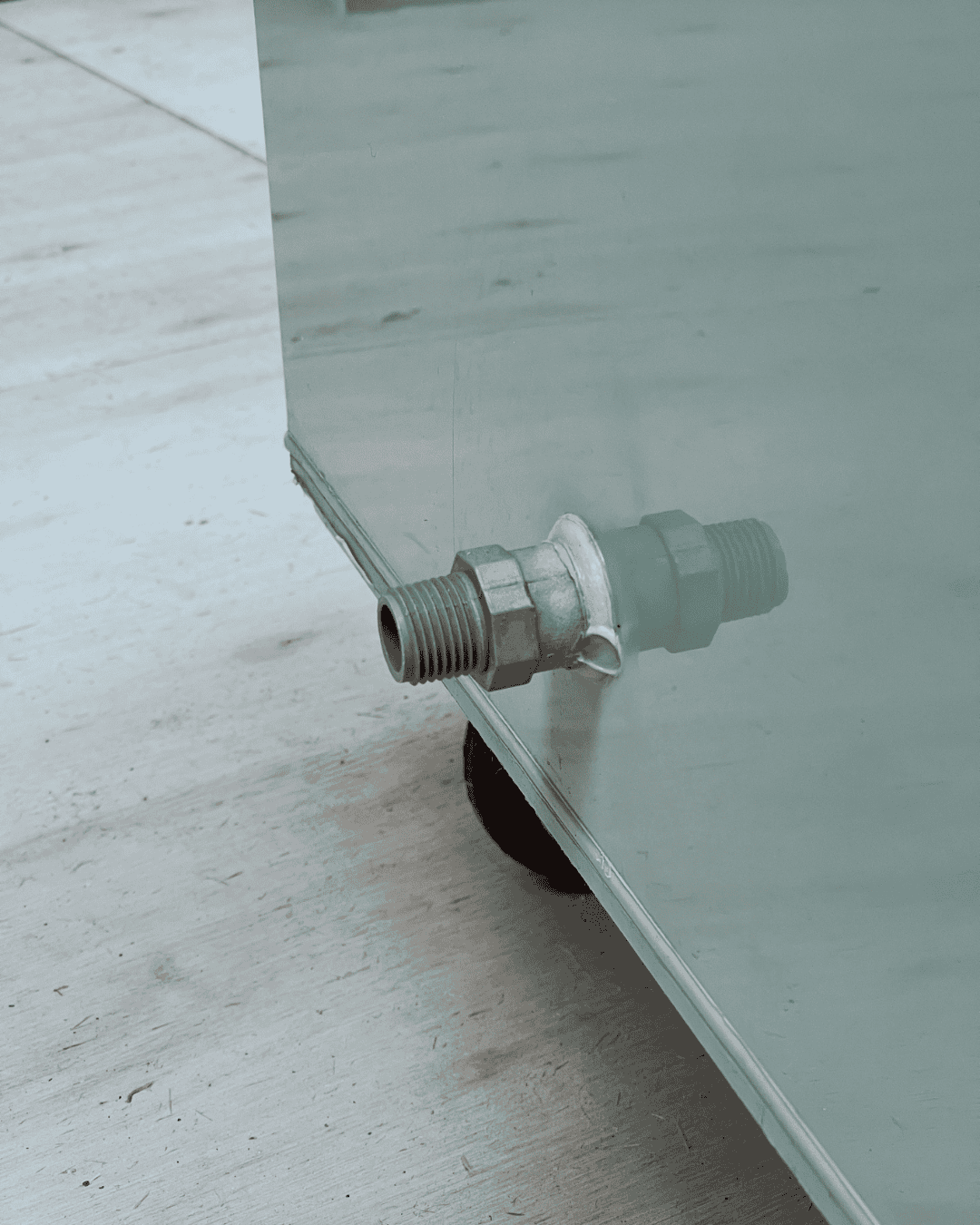

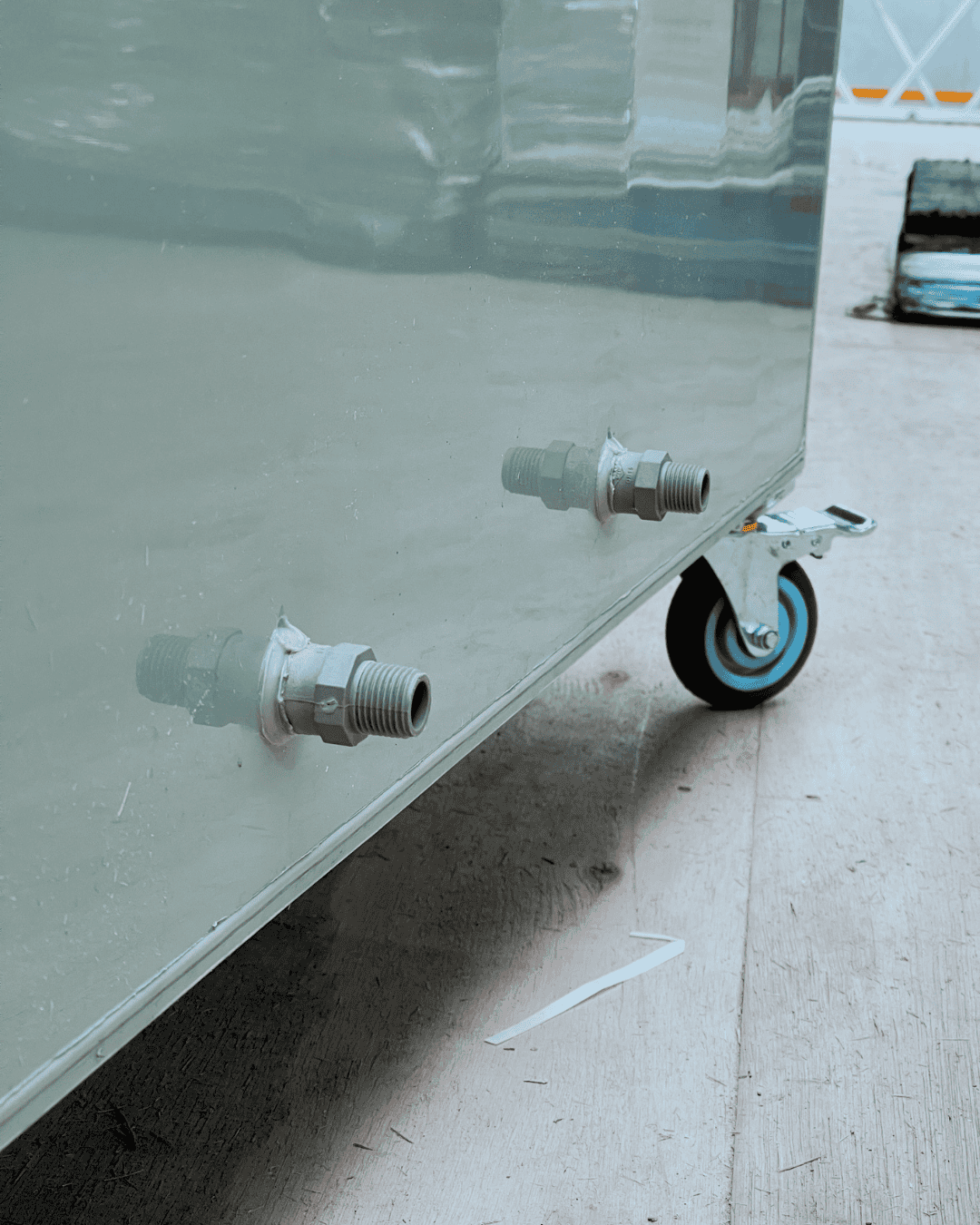

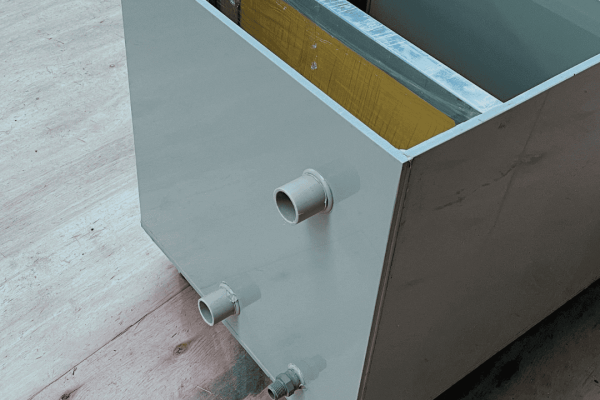

A 40 mm sewer outlet, overflow outlet and multiple release valves assist with installation, emptying and routine cleaning. The tank is mounted on castors for maneuverability, while its removable filter components make ongoing maintenance straightforward.
Key benefits
- Protects your drainage system
- Reduces the amount of ink, emulsion and reclaim solids entering your sewer connection.
- Progressive multi-stage filtration
- Combines large-solids removal, settling chambers and fine final filtration instead of relying on one basic screen.
- Easier cleaning and maintenance

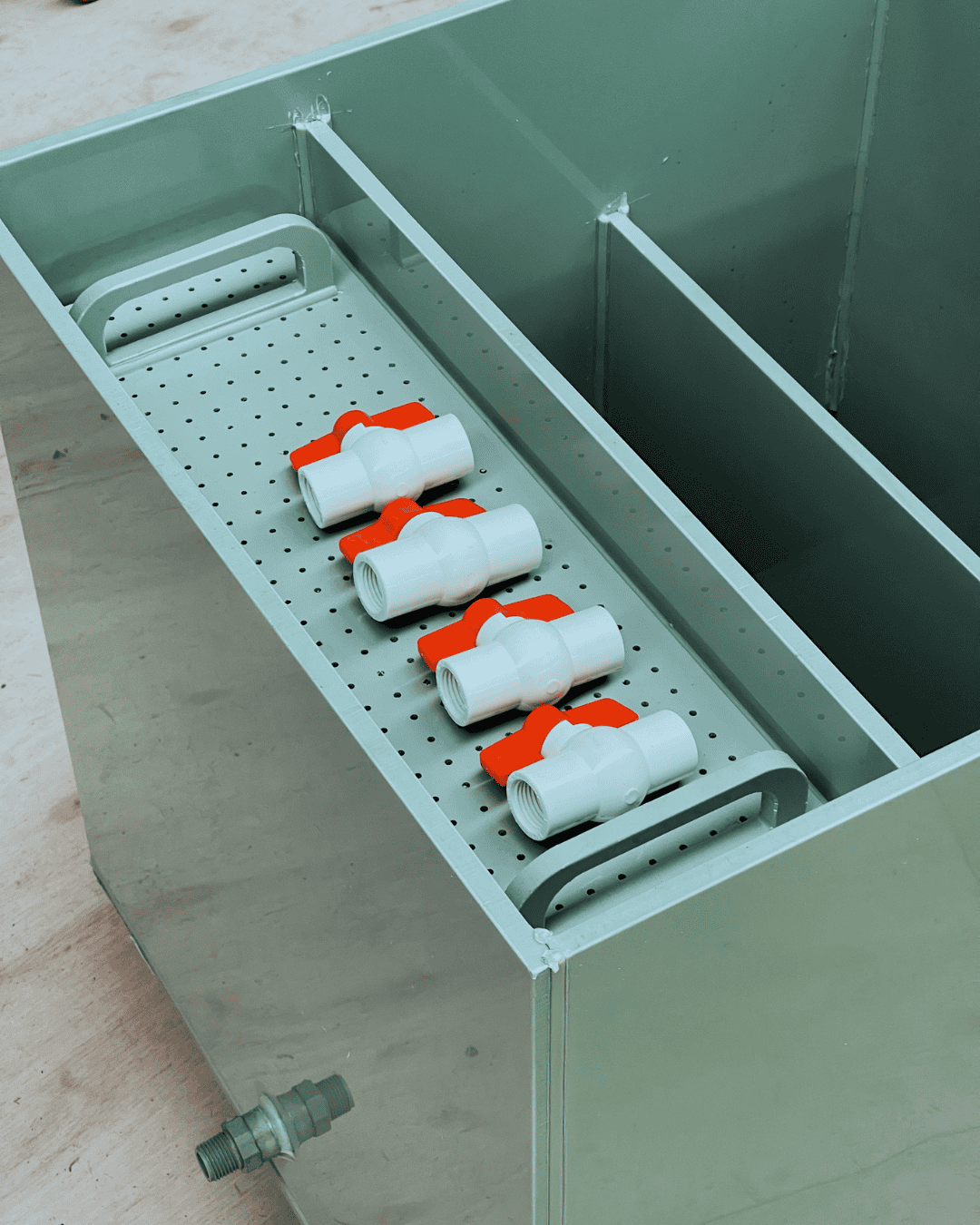

- Removable filter components, tray handles and multiple release valves make collected waste easier to access and remove.
- Durable polypropylene construction
- The tank is manufactured from sturdy polypropylene for use in a wet screen-reclaim environment.
- Mobile and practical

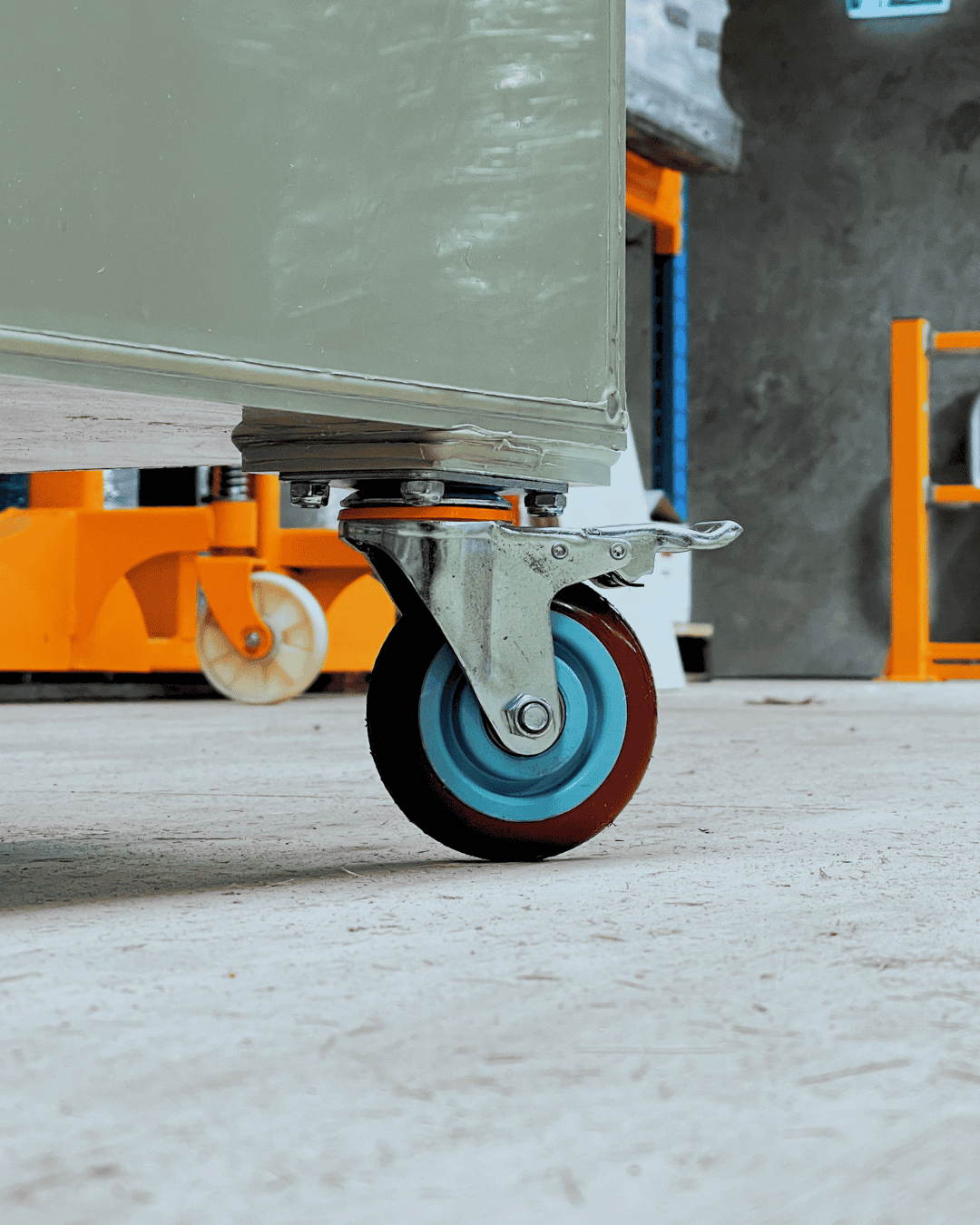

- Mounted on castors, allowing the tank to be repositioned for installation, servicing and cleaning.
- Built for screen-printing wash areas
- Designed specifically for use alongside a screen-printing wash trough rather than being adapted from a generic wastewater tank.
